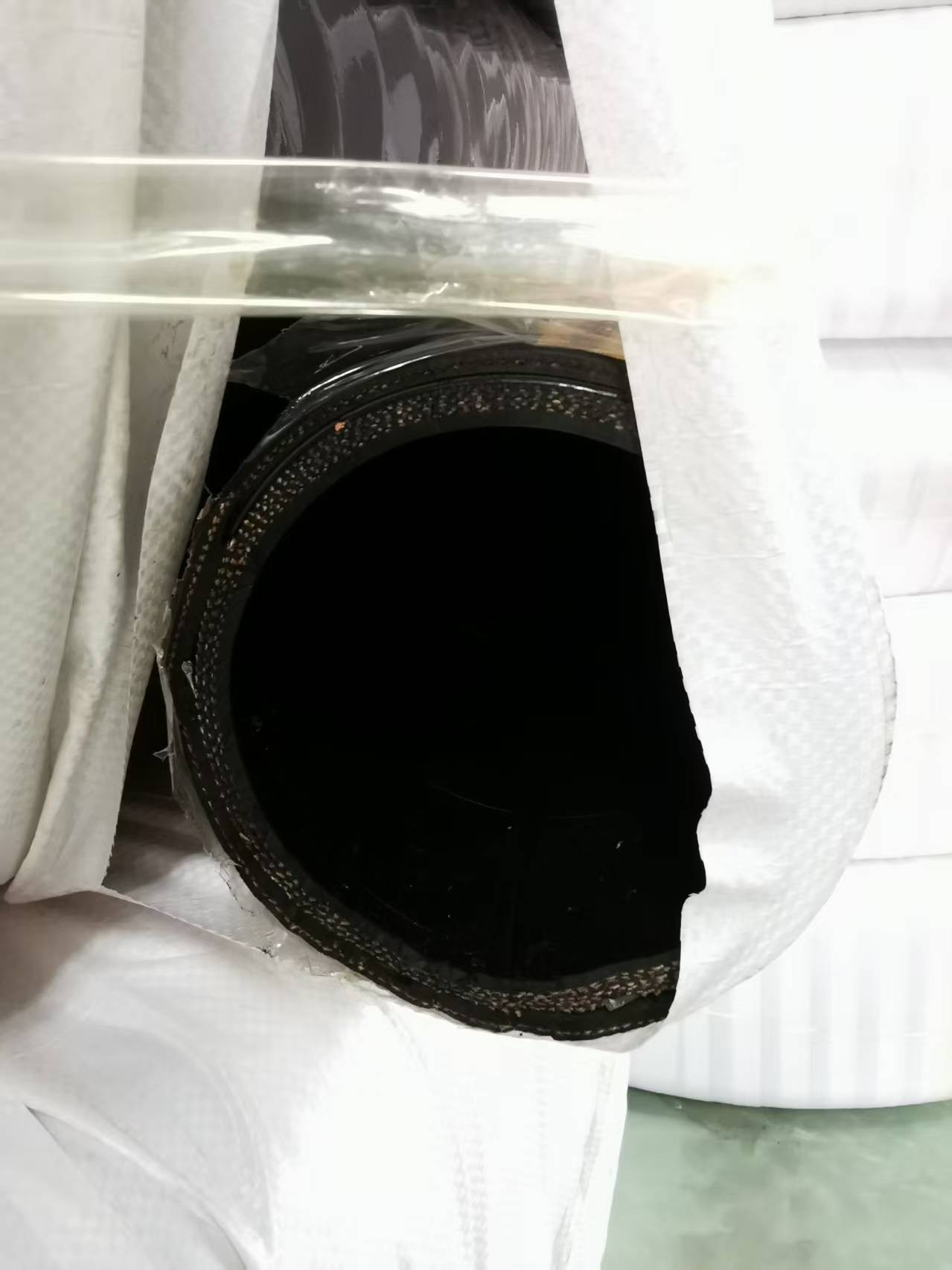

40BAR DIESEL GASOLINE OIL SUCTION HOSE

40BAR  DIESEL GASOLINE OIL SUCTION HOSE

Application:Be applicable to suction and discharge gasoline, kerosene, diesel, engine oil, heavy oil and other mineral oils at normal temperature.

Features: The hose is good in flexibility and the body is solid. The hose has the double properties of bearing both the positive and negative pressure. The performance of the hose remains good even under the pressure of-80KPa at the vacuum. The burst pressure of the hose is 2.5 times or higher than the working pressure.Outer layer's ozone-resistance.

Inner tube:NBR oil resistant.
Reinforcement:Mutiple plies of High tensile strength textile cord with helix spiral steel wire for suction.
Hose cover:NR,CR.ozone resistance,weather aging resistance and seawater erosion resistance.
Working temperature: -20℃ to +80℃.

HOSE LAYLINE:

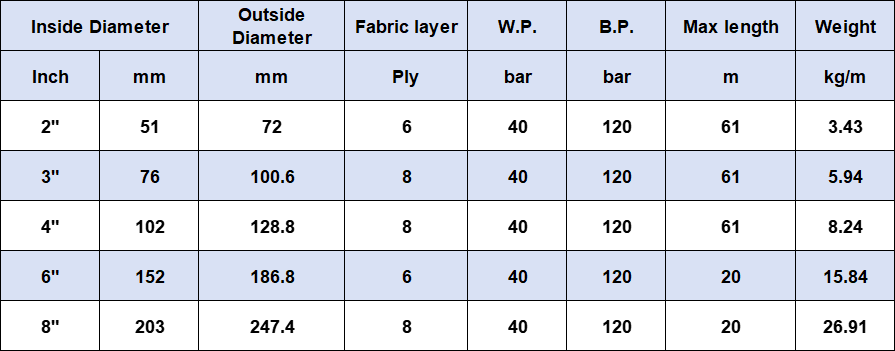

HOSE DATA:
