High Pressure Cement Hose

Cementing hose is often found as flexible connection between the cementing pump manifold and cementing head for conveyance of cement slurries at high pressure. Its multiple layers of high tensile plated steel cables act as the most important role in supporting super operating pressure – 10,000psi and 15,000psi. To extend the hose's life and reduce downtime, the velocity of the media should be controled in an appropriate level.

Oilfield cement hose is supplied with a variety of end fittings to satisfy different requirements on the market, including hammer unions, API threads, butt-welded union, flanges and other special unions. Meets API 7k specifications.

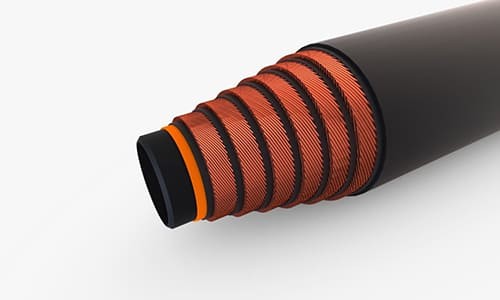

Tube: Nitrile rubber (type C); Special compound for excellent abrasion and corrosion.
Reinforcement: multiple layers of high tensile spiral  wires;
Cover: synthetic rubber – oil, weather and abrasion resistant;
Operating pressure: 10000psi and 15000psi;
Operating temperature: -4°F to 250°F;
Hose inside diameter: 2", 2.5", 3" and 4";
Safety factor: 2.25;
Certification: API 7K.

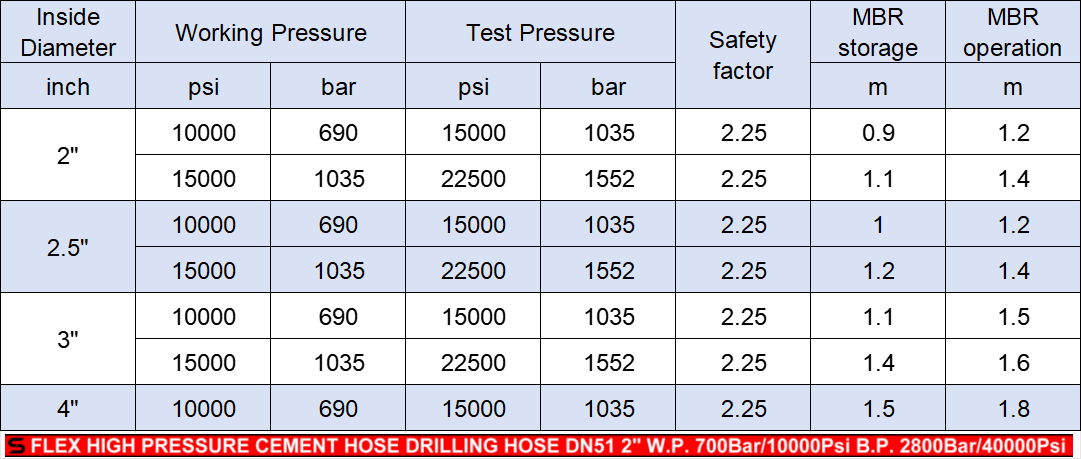

HOSE DATA & LAYLINE
